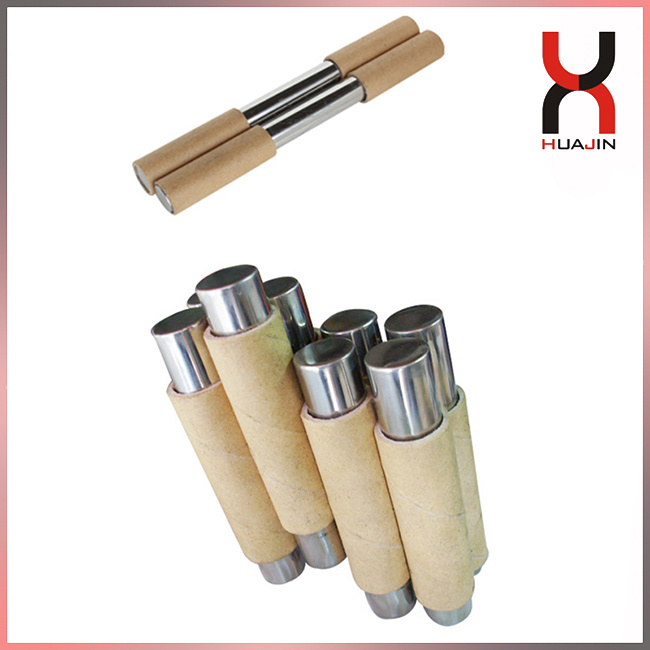

NdFeB Magnet Bar/spacer Magnet/bar Magnet, SUS Case

NdFeB Magnetic Rod/Separator Magnets/Magnetic Bar with SUS Casing

Item	Magnetic Bar
Gauss	6000-13000 Gauss
Material	Neodymium Magnet+SUS304/316L Pipe
Shape	Rod, bar, stick, wand ect.
Working Temp.	<80ºC (176°F) / 80ºC (176°F) ~ 200ºC (392°F
Casing	SUS304/316L
Dimension	Dia: 16mm, 20mm, 22mm, 25mm, 28mm, 30mm, 32mm,50mm ect.
Application	Industrial filter, food industry, Ceramic industry ect.
Feature	Eco-friendly, Green Product, long life.
Performance	Permanent, Strong, Rust-proof, Anti-corrosion
Trade Term	EXW, FOB, CIF, C&F, CFR ect
Payment Term	TT, PayPal, Western Union ect.

Our Company:

Nanjing Huajin Magnetic Materials Co., Ltd. Specializing in the production and sale of
magnetic NdFeB, magnetic bar, magnetic products, magnetic frame. Magnets of various
shapes and sizes can be produced according to customer requirements, such as packaging
diskette, the motor magnetic tile, magnetic ring, toy bar magnet, magnetic ball, with the
exception of iron magnetic rods, magnetic hooks, magnetic separator box; Surface treatment:
Gold, silver, plated epoxy, nickel-plated copper-nickel, zinc, chromium, titanium (blue zinc,
black zinc, color zinc), above the surface treatment to meet environmental requirements.

Grade	Remanence		Coercivity Force		Intrinsic Coercive Force		Max. Energy Product		Working Temp.
	Br		Hcb		Hcj		(BH)max
	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe
N35	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	80 ° C
N38	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	80 ° C
N40	1250-1280	12.5-12.8	≥ 907	≥ 11.4	≥ 955	≥ 12	302-326	38-41	80 ° C
N42	1280-1320	12.8-13.2	≥ 915	≥ 11.5	≥ 955	≥ 12	318-342	40-43	80 ° C
N45	1320-1380	13.2-13.8	≥ 923	≥ 11.6	≥ 955	≥ 12	342-366	43-46	80 ° C
N48	1380-1420	13.8-14.2	≥ 923	≥ 11.6	≥ 876	≥ 12	366-390	46-49	80 ° C
N50	1400-1450	14.0-14.5	≥ 796	≥ 10.0	≥ 876	≥ 11	382-406	48-51	60 ° C
N52	1430-1480	14.3-14.8	≥ 796	≥ 10.0	≥ 876	≥ 11	398-422	50-53	60 ° C
35M	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	100 ° C
38M	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	100 ° C
40M	1250-1280	12.5-12.8	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	100 ° C
42M	1280-1320	12.8-13.2	≥ 955	≥ 12.0	≥ 1114	≥ 14	318-342	40-43	100 ° C
45M	1320-1380	13.2-13.8	≥ 995	≥ 12.5	≥ 1114	≥ 14	342-366	43-46	100 ° C
48M	1360-1430	13.6-14.3	≥ 1027	≥ 12.9	≥ 1114	≥ 14	366-390	46-49	100 ° C
50M	1400-1450	14.0-14.5	≥ 1033	≥ 13.0	≥ 1114	≥ 14	382-406	48-51	100 ° C
35H	1170-1220	11.7-12.2	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	120 ° C
38H	1220-1250	12.2-12.5	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	120 ° C
40H	1250-1280	12.5-12.8	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	120 ° C
42H	1280-1320	12.8-13.2	≥ 955	≥ 12.0	≥ 1353	≥ 17	318-342	40-43	120 ° C
45H	1300-1360	13-13.6	≥ 963	≥ 12.1	≥ 1353	≥ 17	326-358	43-46	120 ° C
48H	1370-1430	13.7-14.3	≥ 995	≥ 12.5	≥ 1353	≥ 17	366-390	46-49	120 ° C
33SH	1130-1170	11.3-11.7	≥ 844	≥ 10.6	≥ 1592	≥ 20	247-271	31-34	150 ° C
35SH	1170-1220	11.7-12.2	≥ 876	≥ 11.0	≥ 1592	≥ 20	263-287	33-36	150 ° C
38SH	1220-1250	12.2-12.5	≥ 907	≥ 11.4	≥ 1592	≥ 20	287-310	36-39	150 ° C
40SH	1240-1280	12.5-12.8	≥ 939	≥ 11.8	≥ 1592	≥ 20	302-326	38-41	150 ° C
42SH	1280-1320	12.8-13.2	≥ 987	≥ 12.4	≥ 1592	≥ 20	318-342	40-43	150 ° C
45SH	1320-1380	13.2-13.8	≥ 1003	≥ 12.6	≥ 1592	≥ 20	342-366	43-46	150 ° C
30UH	1080-1130	10.8-11.3	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	180 ° C
33UH	1130-1170	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-271	31-34	180 ° C
35UH	1180-1220	11.8-12.2	≥ 860	≥ 10.8	≥ 1990	≥ 25	263-287	33-36	180 ° C
38UH	1220-1250	12.2-12.5	≥ 876	≥ 11.0	≥ 1990	≥ 25	287-310	36-39	180 ° C
40UH	1240-1280	12.5-12.8	≥ 899	≥ 11.3	≥ 1990	≥ 25	302-326	38-41	180 ° C

Just for you:

1. Customized Material Neodymium Grade: N35-N52, N35M-N50M, N35H-N48H,
N33SH-N45SH, N30UH-N35UH, N30EH-N35EH;
2. Customized Shaped magnet: Round / block / ring / cylinder / countersunk / arc /
segment other irregular shapes.
3. Custom packaging. Usually we packed the magnet with vacuum polybag. Then packed
in stop magnetic metal box. We can also make the package as your requirements.
4. Customized Mark: to distinguish N pole and S pole.
5. Custom coating. We can coated in Nickel. Zinc, Chromium as your requirements.
6. Customized Working temperature: <80ºC;80ºC-200ºC

Applications:

Kind Warnings:
(1)keep away from moisture
(2)handle with care,do Not Crush
(3)Do Not Crush
(4)Children can't touch

Payment Term:
T/T, L/C, Western Union, PayPal.

Package & Shipment
1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-30 days.

NdFeB Magnetic Rod/Separator Magnets/Magnetic Bar with SUS Casing

Package: Magnetic Isolation Package
Carton: 36*27*15CM

NdFeB Magnetic Rod/Separator Magnets/Magnetic Bar with SUS Casing

How to contact us?

FAQ:
1. How to get quick quotation?
Kindly offer us the specific size, quantity, coating(zinc/nickel), magnetism direction ect
other requiries. Then best price will be offered ASAP.

2.What about the lead time?
(1) Sample: 5-7 days.
(2) Batch quantity: 7-12 days.

3.What's the MOQ?
Normally regular Size: ≥1 Piece.

4. Terms of Paymemt:
(1). T/T in advance(telegraphic transfer-bank order)
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt

Please feel free to contact me for any questions and requiries.
