Brief Description of 2L Heating Mantle

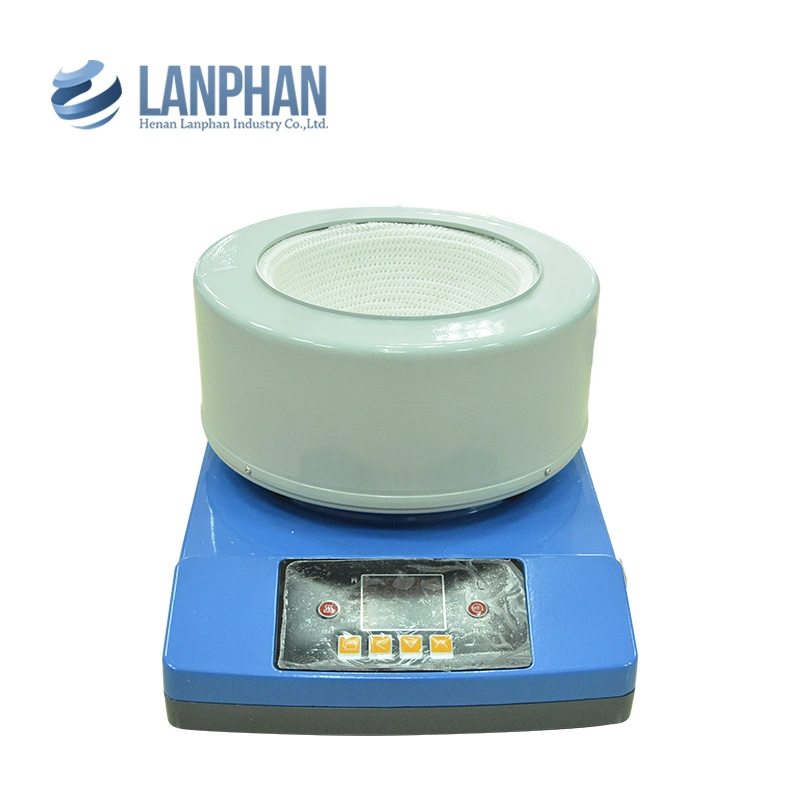

Henan Lanphan ZNCL-TS 5L intelligent electric 5000ml laboratory heating mantle magnetic stirrer is the lab instrument to mix liquid, mainly used for stirring or concurrent heating and stirring liquid of low viscosity or solid-liquid mixture. Its basic principle is repulsive for like charges and attractive for unlike charges. The instrument uses a magnetic field to promote the stirring bar placed in the container to run in a circle in order to stir the liquid. Temperature control use computer chip as main control unit, use multiple digital filter circuit, smart PID circuit control, self-tuning function, double digital display of temperature and stirring speed, silicon controlled, and the interior and external thermocouple switch device accurately display 5000ml laboratory heating mantle's temperature, also accurately display the solution temperature after switching. Comparing to ZNCL-T type, ZNCL-TS intelligent electric 5000ml laboratory heating mantle magnetic stirrer adding function of speed digital display, making instrument operation more convenient.
|Product Name||ZNCL-TS Intelligent Electric Heating Mantle Magnetic Stirrer|
|50-1800rpm Digital Display|
|Motor Power||40W DC14-24V|
|Digital display, silicon controlled, measure temperature by interior and external sensor|
|Max surface temperature 380ºC|
|Boiling||Water 10-25 minutes|
|Insulating Layer||Alkali-free glass fiber, temperature resistance of 450ºC|
|Relative Humidity ≤35%≥500MΩ|
|Keep warm by environmental protection material of aluminum silicate wool which has been vacuum case-hardened.|
|260*155 *155||260*155 *155||260*155 *155||325*215 *175||430*270 *305||430*270 *305||500*330 *305||500*330 *305|
|310*205 *205||310*205 *205||310*205 *205||375*265 *225||480*320 *355||480*320 *355||550*380 *355||550*380 *355|
|Remark||We can customize special-shaped heating mantles (10L, 20L, 30L, 50L)|

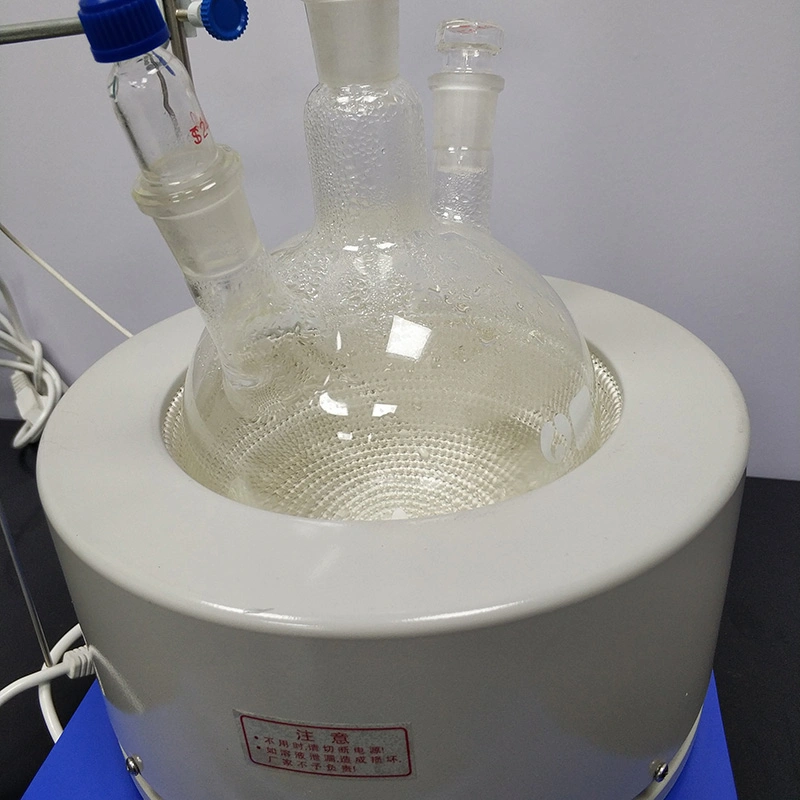

1. Round bottom flask. Used for filling solution.
2. Stirring bar. Used for stirring solution of heating mantle laboratory equipment supplier.
3. Universal clamp. Used for fixing flask or external temperature sensor.
Q: What kind of plug can you supply?
A: European standard, American standard, German standard, or as your request.
Q: I use the heating mantle laboratory equipment for the first time, why there are white smoke and strange smell?
A: Don't worry, it belongs to normal phenomenon. Since fiberglass contains oily and other compound, please put your heating mantle laboratory equipment supplier in ventilated place, wait for a few minutes and you can use it.
Q: Why there are frizzle sound when using laboratory heating mantle laboratory equipment whose volume is higher than 3000ml?
A: The reason is different furnace wire structure and pulse signal of silicon controlled pressure regulating, you can feel relieved to use it.
