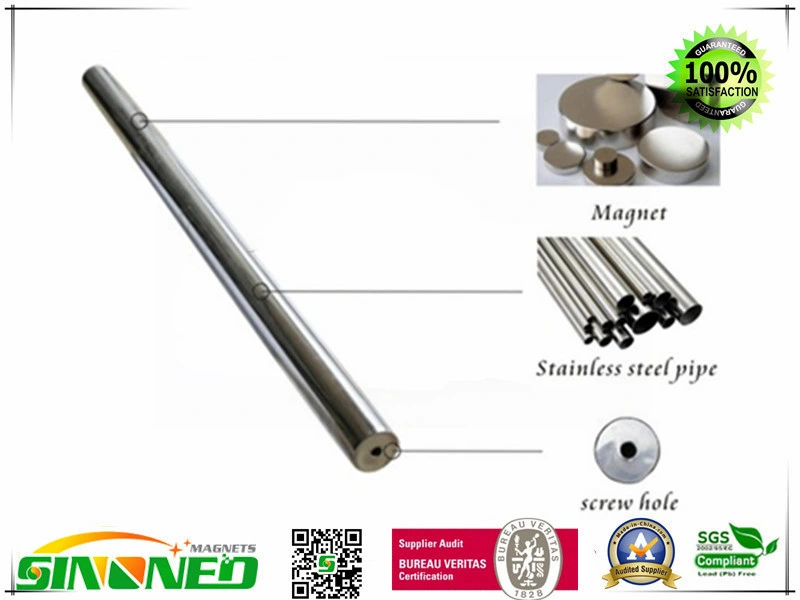

Magnetic Rods,Magnetic Bar,Magnetic Filter tube(Magnetic Separator) provide an effective means removing ferrous chips and metal particles from loosely packed, free flowing materials. They are usually constructed of 304 stainless steel tubes, or 316 stainless steel tubes for special domains filled with Ceramic or Rare Earth Magnet. Either round or square shape bars are available for customers' desiring for special applications.
Magnetic filters may apply in medicines, sanitation, textile, machinery and foodstuffs. The filer will attract iron/steel substances away from liquids, from among grains or powders.
Our standard bars is 25mm. (1 inch) in diameter and any length per customers' request up to 2500mm...Besides, we also take special orders, such as square shape Magnetic bars.
Normal Size: Dia25x100mm, Dia25x150mm, Dia25x200mm, Dia25x250mm, Dia25x300mm, Dia25x350mm,
Dia25x400mm, Dia25x450mm, Dia25x500mm, Dia25x10000mm, Dia25x15000mm
Maximum Operation Temperature:
6 serieses are available for customer to choose from
N series up to 80 degree C
M series up to 100 degree C
H series up to 120 degree C
SH series up to 150 degree C
UH series up to 180 degree C
EH series up to 200 degree C
1, Tapped threaded holes at each end for easy installation.
2, Tapped one threaded hole at one end, and the other end is plain welded.
3, Both of ends are plain welded.
Per customers' requirement. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength and Maximum Operation Temperature for reference:
|Φ 19 (0.75" )||√ EH||√ EH||√ EH||√ H||√ M||-||-|
|Φ 22 (0.85" )||√ EH||√ EH||√ EH||√ H||√ M||√ N||-|
|Φ 25 (1.00" )||√ EH||√ EH||√ EH||√ SH||√ H||√ M||√ N|
|Φ 32 (1.25" )||√ EH||√ EH||√ EH||√ SH||√ H||√ M||√ N|
|Φ 38 (1.50" )||√ EH||√ EH||√ EH||√ UH||√ SH||√ H||√ M|
|Φ 50 (1.75" )||√ EH||√ EH||√ EH||√ UH||√ SH||√ H||√ M|
|Φ 76 (3.00" )||√ EH||√ EH||√ EH||√ UH||√ UH||√ SH||√ H|
|Φ 100(4.00" )||√ EH||√ EH||√ EH||√ UH||√ UH||√ SH||√ H|
(1)."√"means it can be manufactured on the condition of the diameters listed in the table."- "means can not be manufactured.
(2). The related Max working temperature from different series.
H series: <=120
SH series: <=150
UH series: <=180
EH series: <=250
(3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made .Max length of is 2500mm when diamteter is 25mm.
(6). Various end design are available ,such as Nail head ,thread hole ,double screw bolt ,etc .
Packing of our products:
1. Sea shipment : strong cartons and then packed in strong wooden cases.
2. Air shipment: well shielded cartons for magnetism inspection.
Our Shipping ways:
1. Express courier, TNT, Fedex, DHL,UPS for your choice.
*Ship door to door. You can provide your express account for the freight payable at destination.
*Delivery time: 3-7 days
2. Air cargo , shipping to your nearest airport.
*If you choose this way, please provide us your nearest airport and zip code.
*Suitable for cargo over 45 kg
3. Sea cargo, shipping to your nearest port.
*If you choose this way, please provide us your nearest port and zip code.
*Delivery approximately 30 days.
*This type of shipping is suitable for cargo over 200KGS, or have big volume.
1,With more than 10 years experiece of magnets area
4,Competitive price:People have asked us how we can offer such high quality at such good prices and the answer is simple: we
design and build our own products and can pass that savings on to you. There is no middleman.
5,OEM are welcomed,samples is available,small orders accepted
6,100% Quality & Best Service Guarantee:Competitive pricing doesn't mean we skimp on service. Our fully staffed office of experienced professionals strives to return your quote on the same business day.
7,Quick delivery time:It is about 7~15 days.
8,Payment:We can accept T/T,Westernion Union,Paypal
Let Sinoneo help you in filtering out those unwanted ferrous materials!
Magnetic filter grate/grid have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.
We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic filter grate/grid.
Our magnetic grate/grid are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with a onetime investment you can enjoy benefits for a longer time.
Our clientele profile includes some of the leading business persons from medicines, sanitation, machinery, and textile and food industry. We provide quality products at the most competitive price. Our product price ranges from $7-$400.
Go through our product list and place your order for magnetic grate/grid. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.
For any queries or else for placing your orders feel free to contact us now.
Let Us Assist You!
Our magnet experts will help you get exactly what you need - custom or stock - in record time with great quality at a very competitive price.
