| Model | BC100 |
| No Voice Coil Diameter | 100 mm |
| Nominal Impedance | 8Ω |
| Sensitivity | 102 dB |
| Usable Frequency Range | 1.0KHz-13KHz |
| Rated Power | 100 W |
| MAX Power | 200 W |
| Installation Dimensions | |
| (Mounting Holes B.C.D) | Φ100 mm |
| (Screw diameter) | 4-M6 |
| (Horn throat size) | Φ36 mm |

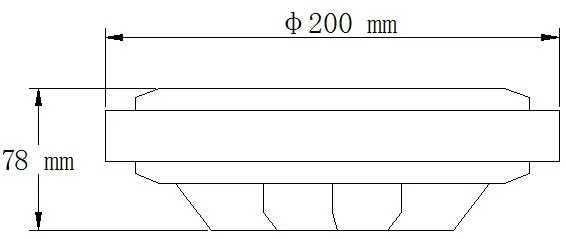

| (Baffle Hole Diameter) | 200 mm |
| (The full height) | 78mm |
| (Net Weight) | 7.25 Kg |
